Example: rotary actuation system with
brushless servo motor (BLDC) and digital signal
processor (DSP)

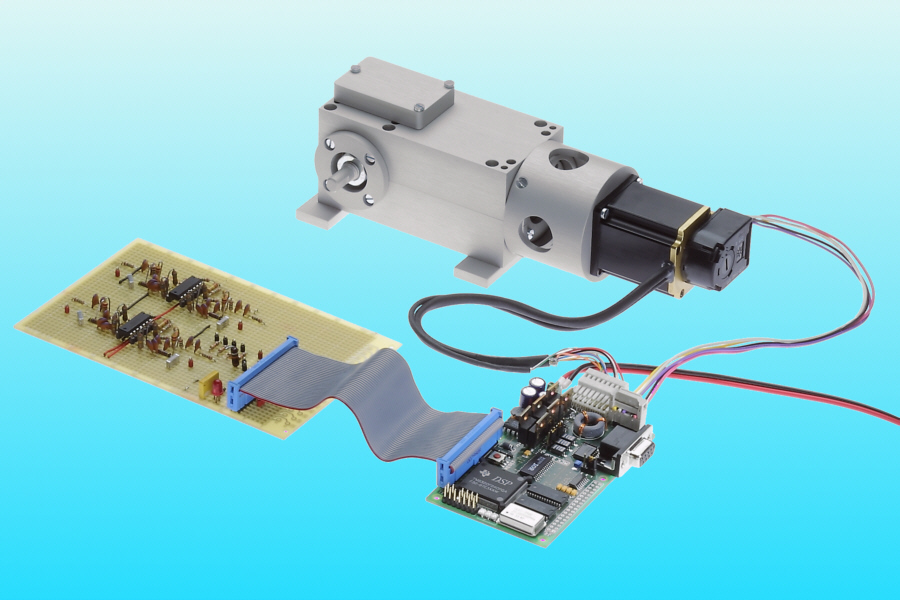

The photograph shows
the key components of an actuation system:
- the actuator which positions the load
and delivers the mechanical power and
- the electronic which accepts the bus
commands, reads the sensors and transforms the data into
switching commands for the power stage.
The photograph also shows a
test board (connected by ribbon cable) for the
evaluation of test signals.
