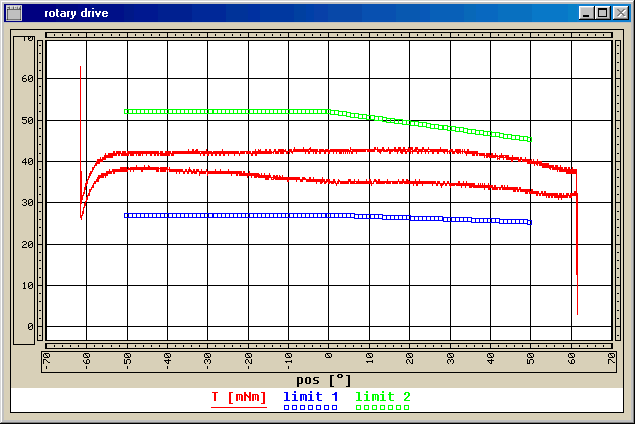

| A key performance feature is the output torque of the actuator over the actuation travel. The diagram shows the actual measured data and the allowable tolerances. The PC program generates (besides the diagram) also a test report for the documentation. The actuator generates a torque of approx. 40 mNm (0.04 Nm resp.5.7 in-oz) over the complete travel of +/- 62° which is well within the required range. | |||
|
